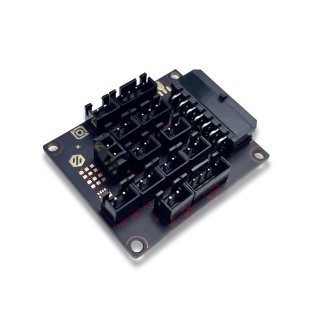

The breakout PCB serves the opposite purpose of the toolhead PCB - it splits the 14-pin toolhead cable into individual ports , which can then be connected to the mainboard. The breakout PCB has pins that match their counterparts in the toolhead PCB. The breakout PCB also accepts the 4-pin endstop cable found in LDO kits. The LDO Toolhead Breakout Board makes wiring your Stealthburner or Afterburner Toolhead PCBs easier.The LDO Voron Kits (Switchwire, V2.4r2, Trident) all include a version of the Afterburner Toolhead boards.
Scope of delivery
1x Toolhead Board
You can find a additional wiring guide here
