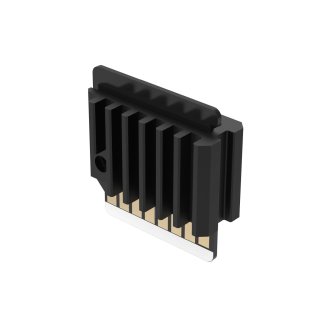

This is the new generation of motor drivers.Thanks to the new connector system, These drivers can not only be installed faster and more securely, but also offer better heat dissipation thanks to the larger body. The EZ drivers can either be operated on a normal mainboard using the EZ connector (sold separately) or on a board with an EZ driver interface. EZ2209 is an ultra-quiet motor driver for two-phase stepper motors.The continuous drive current is 2A and the peak current is 3A. Features: Dimensions: 18.5mm x 19.8mm Input voltage: 12V-24V DC Continuous drive current: 2A Sensing Resistance: 0.11Ohm Max. Microstep 256 Configuration via UART Stallguard-TMC2209 provides load and speed loss detection technology Coolstep-TMC2209 offers dynamic control technology that saves up to 75% energy StealthChop2 - for silent operation and smooth movement SpreadCycle - highly dynamic motor control chopper CoolStep - current control for energy saving StallGuard4 - sensorless engine load detection More information, firmware and instructions are available here
Features:
Dimensions: 18.5mm x 19.8mm
Input voltage: 12V-24V DC
Continuous drive current: 2A
Sensing Resistance: 0.11Ohm
Max. Microstep 256
Configuration via UART
Stallguard-TMC2209 provides load and speed loss detection technology
Coolstep-TMC2209 offers dynamic control technology that saves up to 75% energy
StealthChop2 - for silent operation and smooth movement
SpreadCycle - highly dynamic motor control chopper
CoolStep - current control for energy saving
StallGuard4 - sensorless engine load detection
